- Based on ASMedia ASM1061R PCI-Express 2.0 SATA 6Gbps Controller
- 1-Lane Mini PCI-Express 2.0 Interface. Supports Communication Speed of 2.5Gbps and 5.0Gbps
- Compliant with PCI-Express 2.0 Base Specification
- Hard Drive Activity LED Indicator. (LED Blinks for Read/Write Activities)

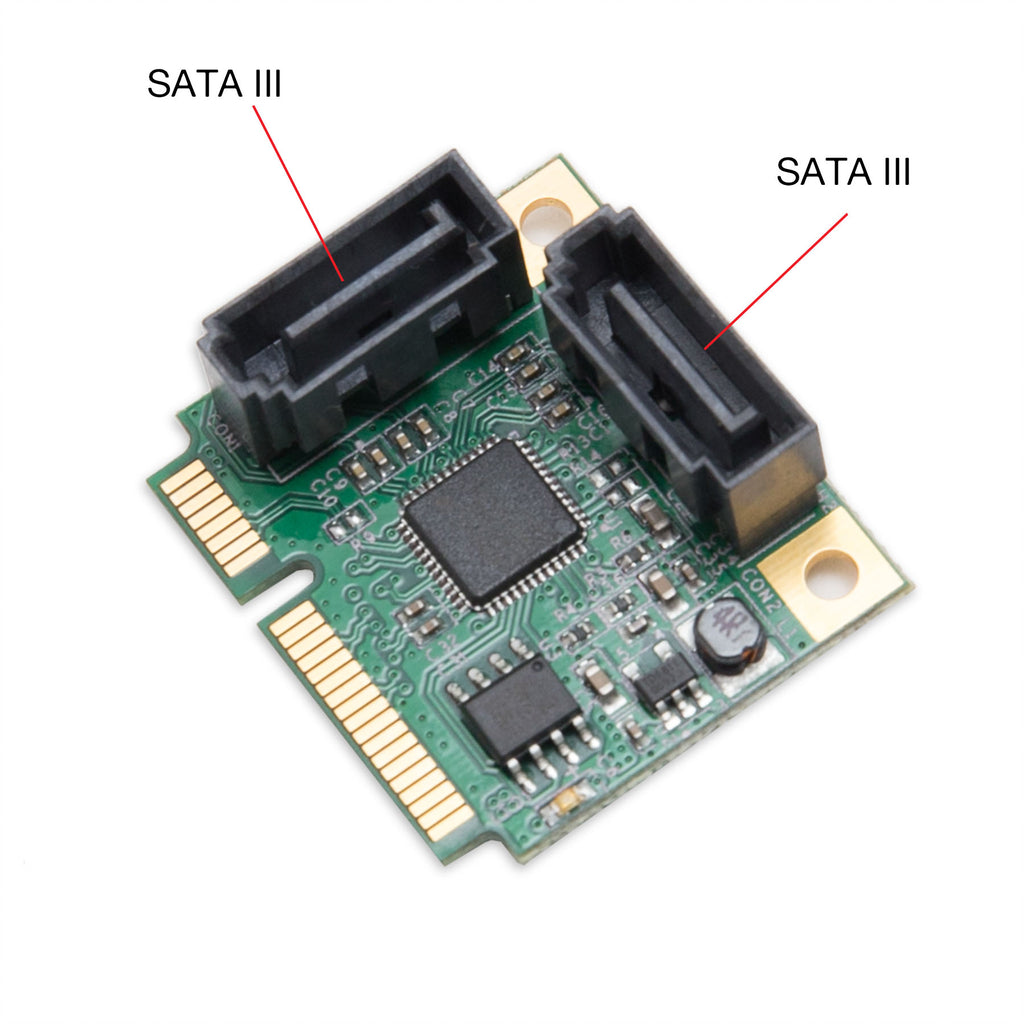

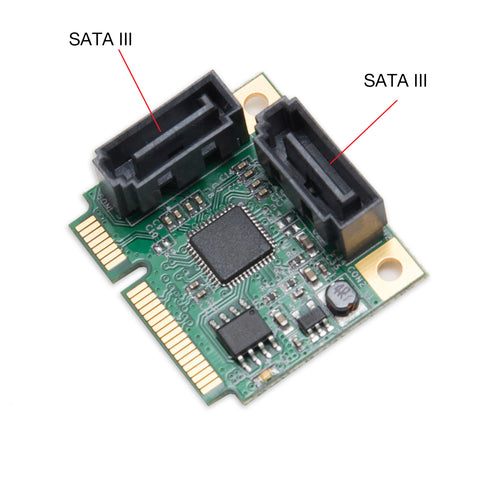

- Serial-ATA (SATA) Interface:2 SATA 6.0Gbps Ports Compliant with Serial-ATA Specification 3.0 Supports Communication Speed of 6.0Gbps, 3.0Gbps, and 1.5Gbps Compatible with SATA-III (6Gbps), SATA-II (3Gbps), SATA-1 (1.5Gbps) Hard Drives and SSD's Supports G
- Supports RAID 0 / 1 / SPAN.

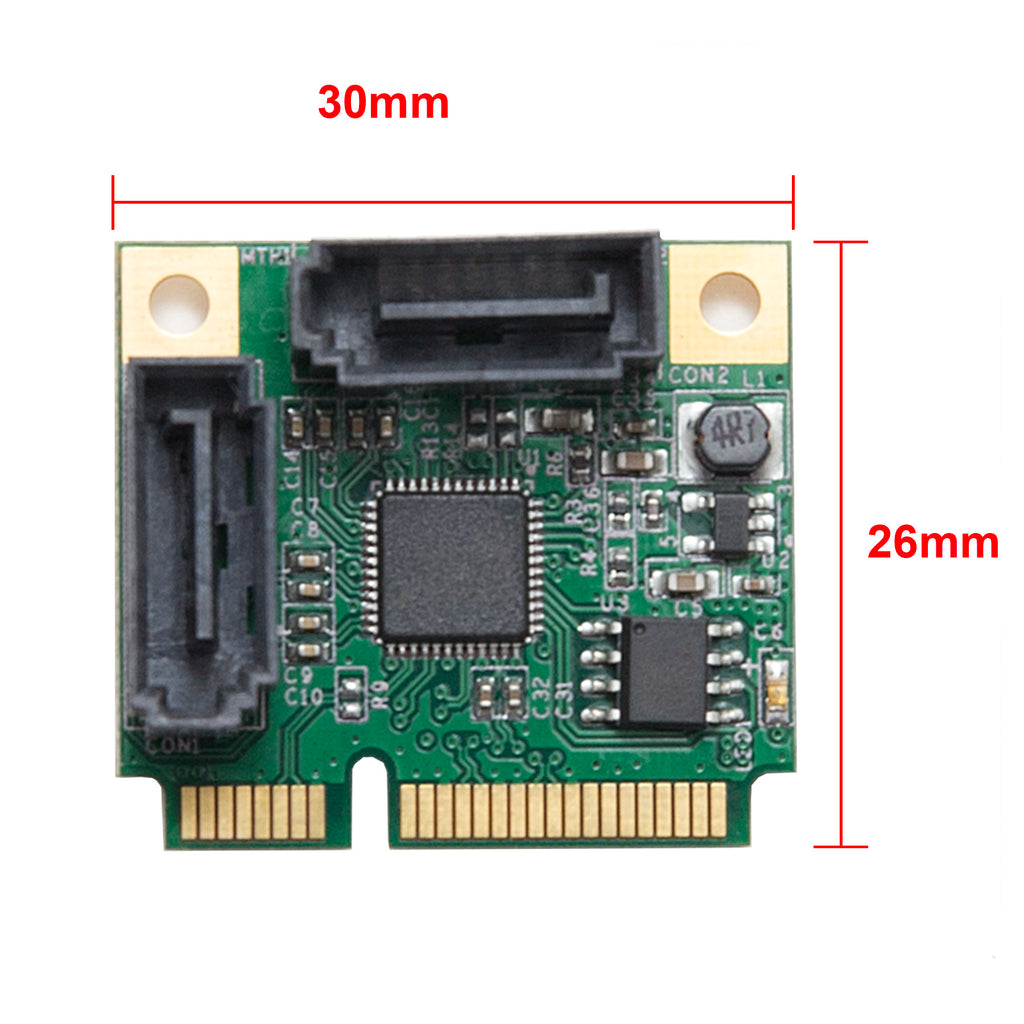

- Dimensions: 30x50.95 mm
- ***Notes: Card is bootable but it requires a re-install of the OS/repair of OS.**
This card enables Serial ATA PHY up to 6.0Gbps high speed interface utilizing a native Mini PCI-Express 2.0 interface.
