- Intel 82599 Chipset

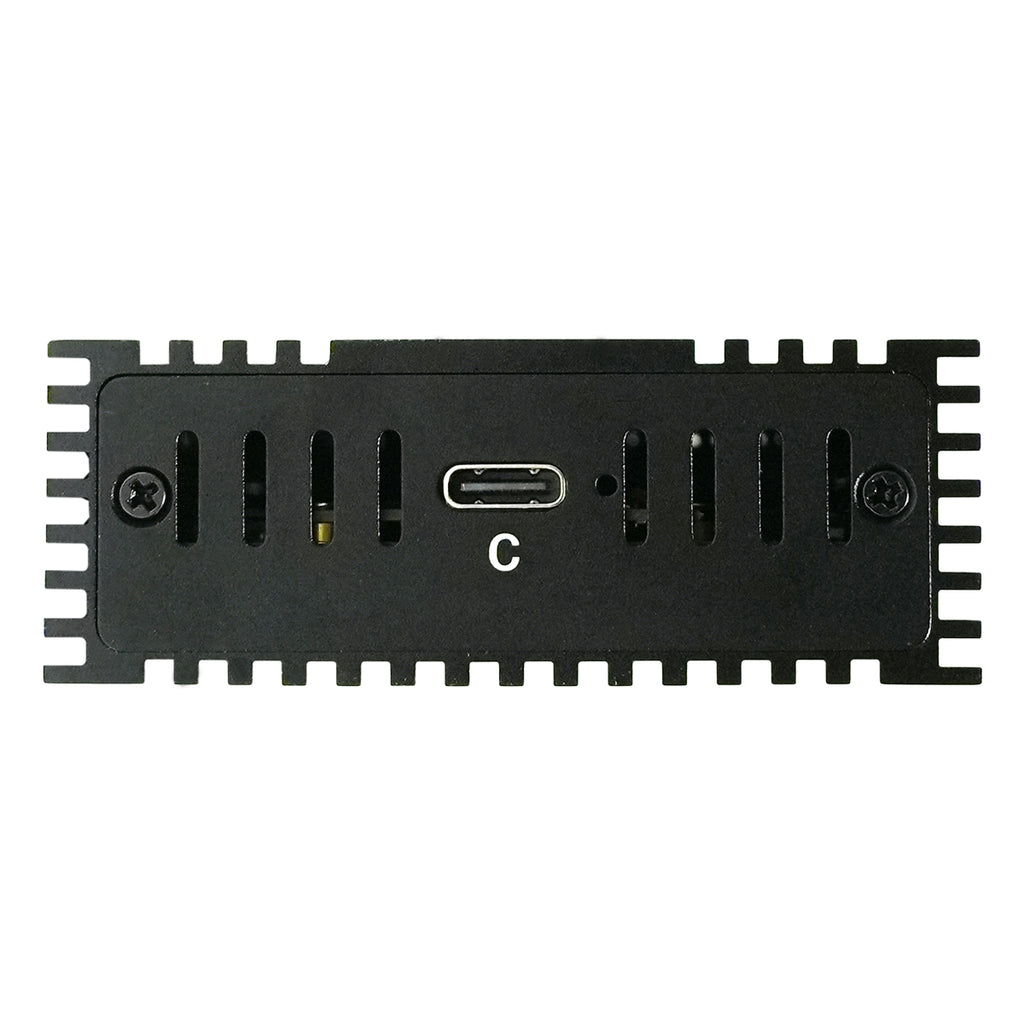

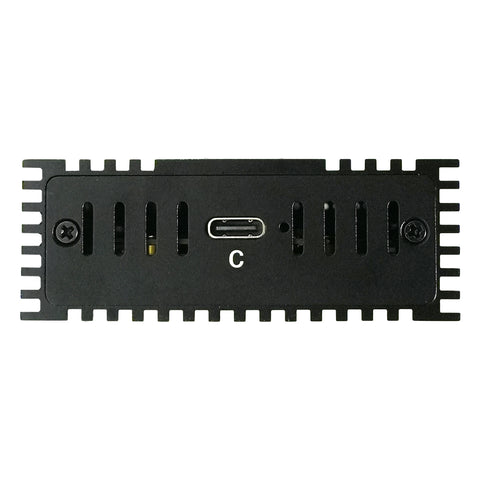

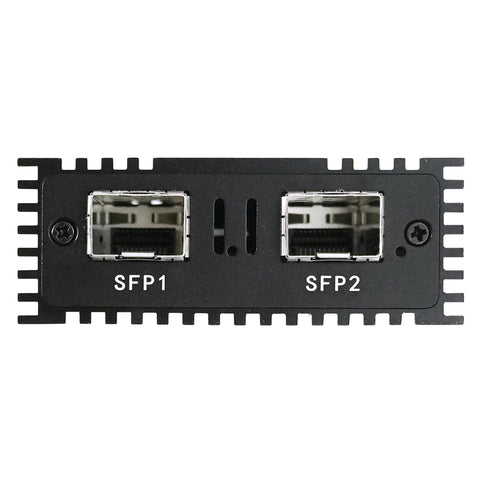

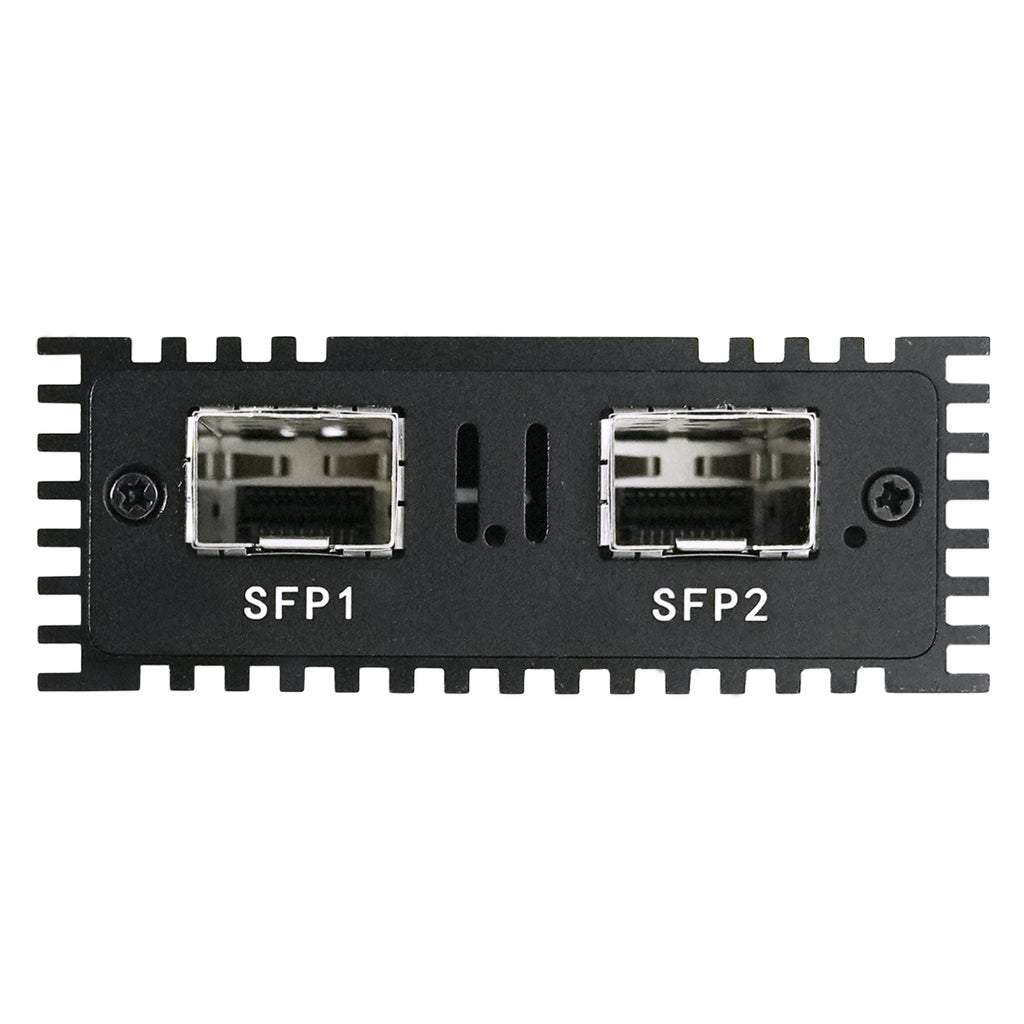

- Adds two fiber SFP+ 10 Gigabit Ethernet port to your computer with USB Type-C ports. Connects to any USB Type-C port, or at the end of a USB device daisy chain.
- Complies with the 10 Gb/s and 1 Gb/s Ethernet/802.3ap (KX/KX4/KR) specification.
- Complies with the 10 Gb/s Ethernet/802.3ae (XAUI)specification.
- Complies with the 1000BASE-BX specification.
- Complies with the IEEE 802.3x 100BASE-TX specification.
- Support for jumbo frames of up to 15.5 KB.
- Auto negotiation Clause 73 for supported mode.
- CX4 per 802.3ak
- Flow control support: send/receive pause frames and receive FIFO thresholds.
- IEEE 802.1Q Tagged VLAN and Energy-Efficient Ethernet supported.
- TCP segmentation offload: up to 256 KB
- IPv6 support for IP/TCP and IP/UDP receive checksum offload.
- Fragmented UDP checksum offload for packet reassembly.
- Message Signaled Interrupts (MSI), (MSI-X).
- Interrupt throttling control to limit maximum interrupt rate and improve CPU usage.
- Receive packet split header
- Multiple receive queues (Flow Director) 16 x 8 and 32 x 4.
- 128 transmit queues
- Receive header replication
- Dynamic interrupt moderation
- DCA support
- TCP timer interrupts
- Support for 64 virtual machines per port (64 VMs x 2 queues).
- Support for Data Center Bridging (DCB)(802.1Qaz, 802.1Qbb, 802.1p)
- LED indicator lights for link/activity/speed status.
- Large gaps for air flow and heatsink for passive cooling. Aluminum enclosure to withstands heavy use.
- Powered through its USB connection, requires no power adapter. Bus powered 10GbE network adapter. Operating Temperature: 0°C to +55°C；Storage Temperature: -40°C to +70°C.

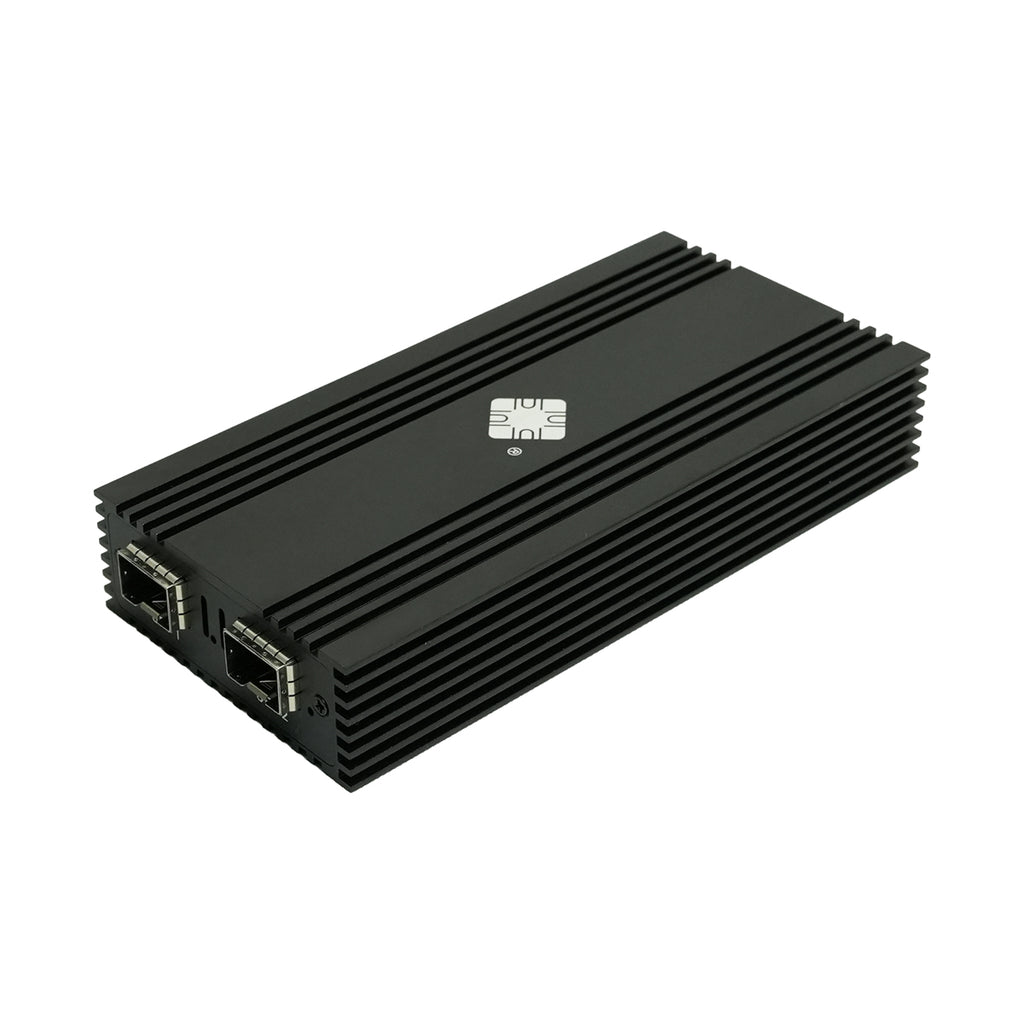

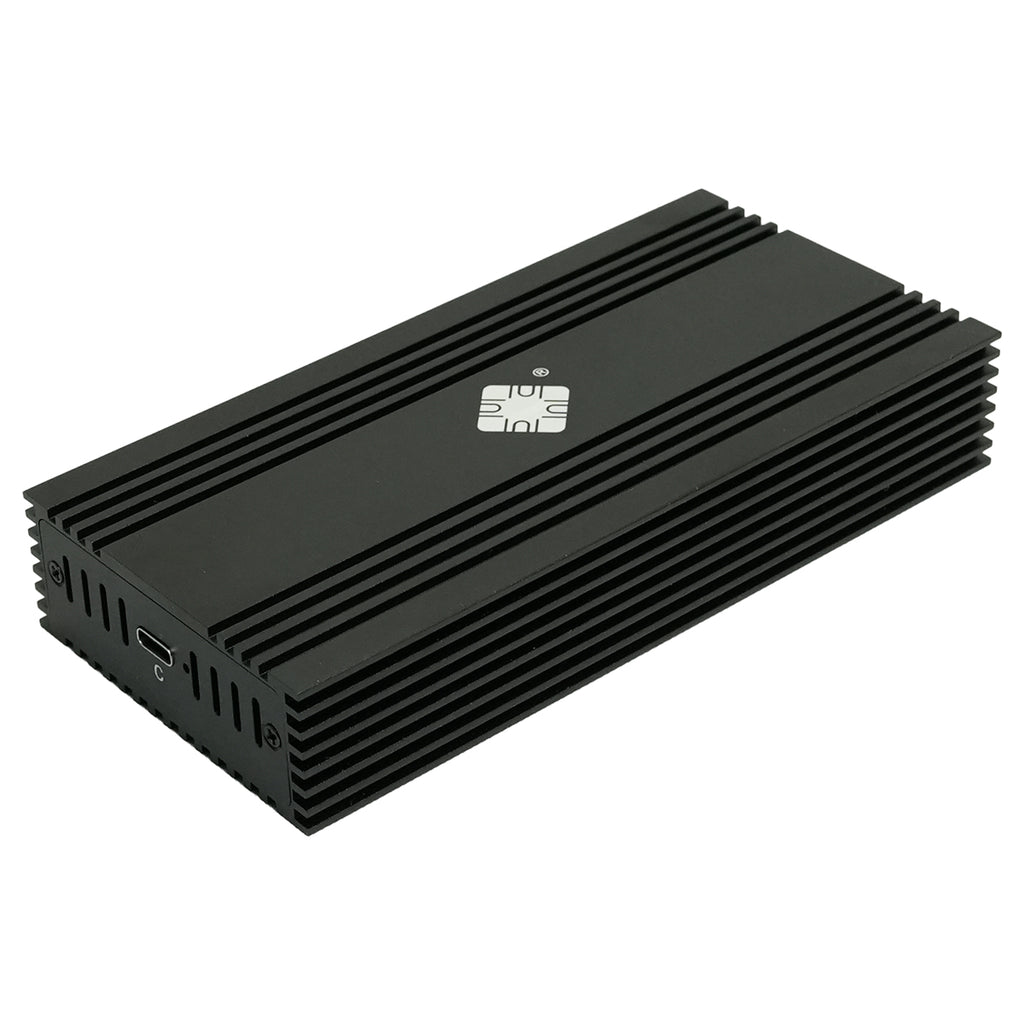

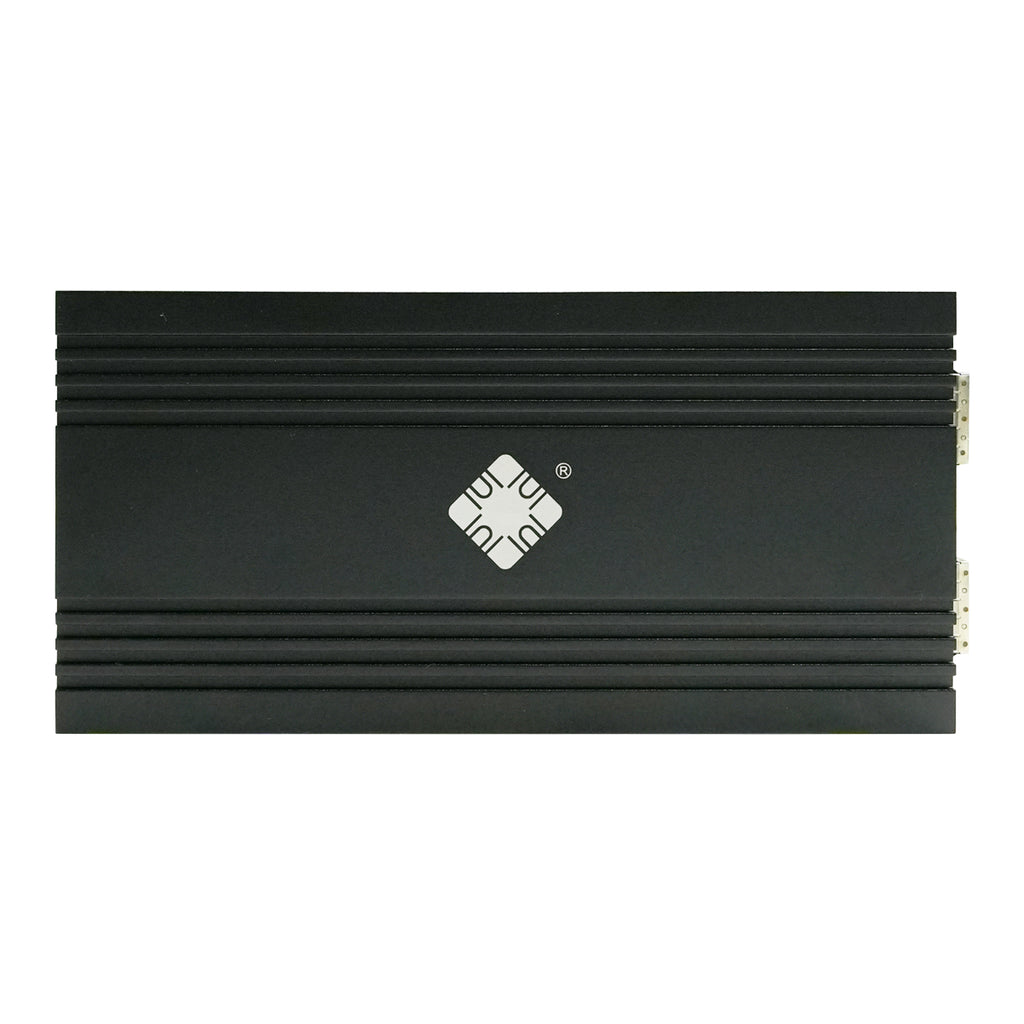

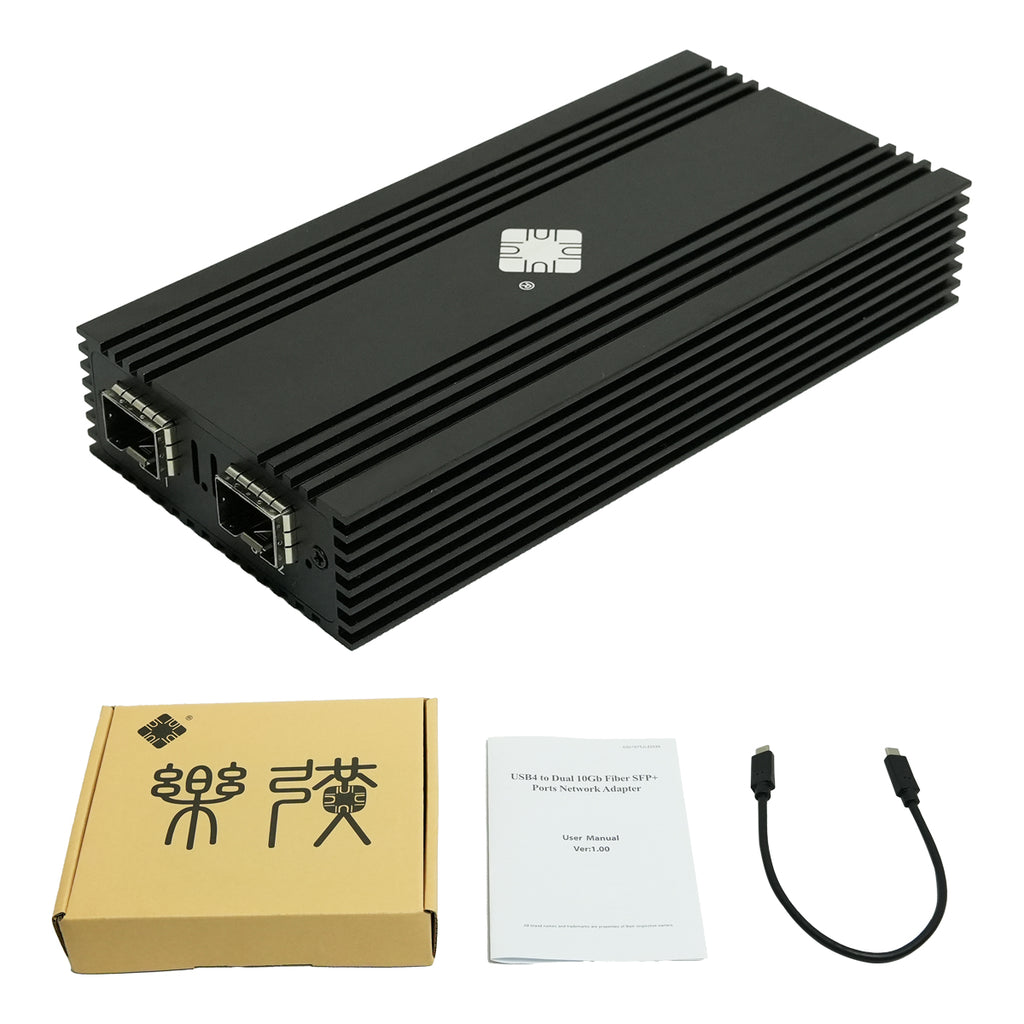

This network adapter offers a portable, bus powered, fanless and low-cost 10GbE solution enabling 1000Base-BX and IEEE 802.3ae (XAUI) connectivity for Microsoft® Windows® and Linux environments over USB4.0. It is compatible with Thunderbolt 3/4/5. Ideal for server and professional workstations that require reliable, accelerated access to external storage and networks for I/O demanding applications.
